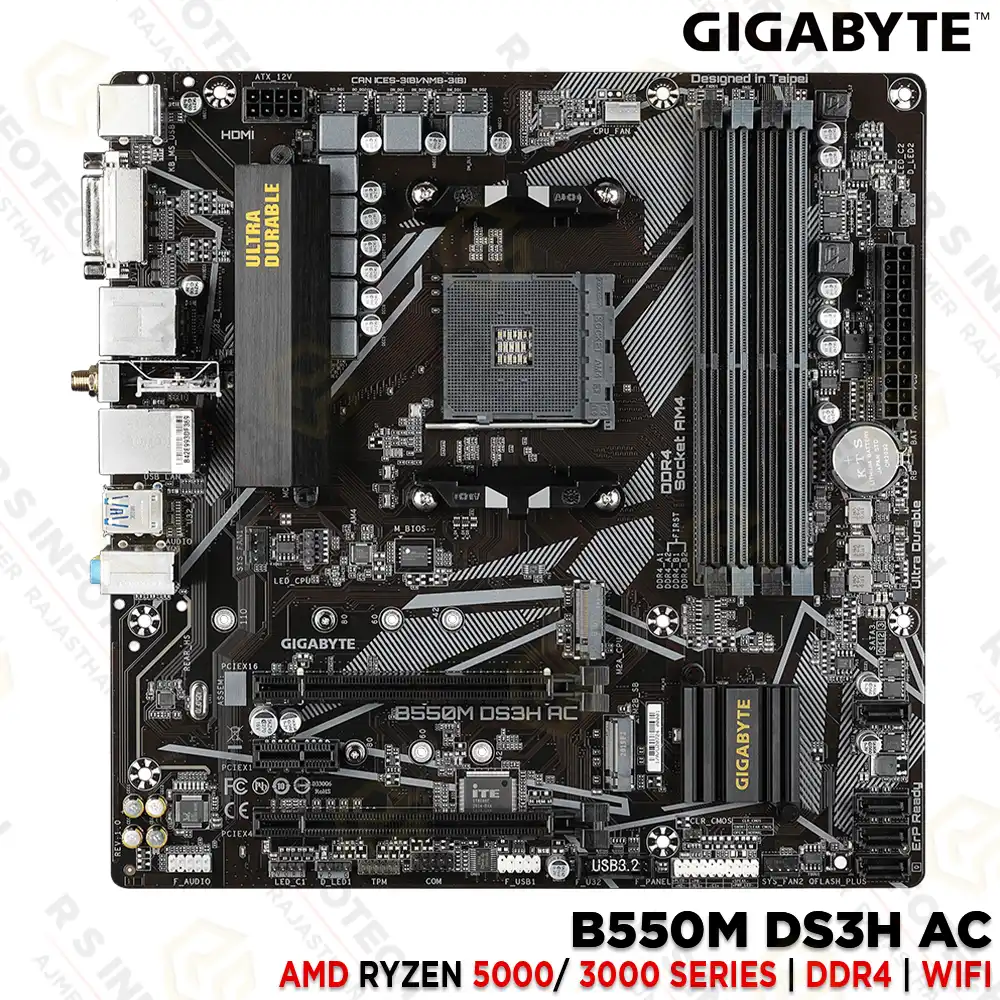

GIGABYTE B550M DS3H AC AMD RYZEN 5000 5000 G-SERIES 4000 G-SERIES 3000 SERIES DDR4 MOTHERBOARD
| Specification | Details |
|---|---|
| Brand: | GIGABYTE |
| Model: | B550M DS3H AC |
| Form Factor: | Micro-ATX |
| Chipset: | AMD B550 |
| CPU Socket: | AMD AM4 |
| Processor Support: | AMD Ryzen™ 5000, 5000G, 4000G, 3000 & 3000G Series |
| Memory Type: | DDR4 |
| Memory Slots: | 4 × DIMM |
| Maximum Memory: | 128GB |
| Memory Speed: | Up to DDR4-4733 MHz (OC) |
| Memory Architecture: | Dual Channel with XMP Support |
| PCIe Slots: | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16 (x4), 1 × PCIe 3.0 x1 |
| M.2 Slots: | 2 × M.2 (PCIe 4.0/3.0 NVMe & SATA Support) |
| SATA Ports: | 4 × SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 |
| LAN: | Realtek Gigabit Ethernet |
| Wireless: | Integrated 802.11ac Dual-Band Wi-Fi |
| Bluetooth: | Bluetooth 5.0 (Revision dependent) |
| Video Outputs: | HDMI 2.1, DisplayPort 1.4, DVI-D |
| Audio: | Realtek High Definition Audio (7.1 Channel) |
| RGB Support: | RGB Fusion 2.0, Addressable RGB & RGB LED Headers |
| Cooling Features: | Smart Fan 6 with Hybrid Fan Headers |
| BIOS Features: | Q-Flash Plus, UEFI BIOS |
| Operating System: | Windows 11 / Windows 10 (64-bit) |
| Warranty: | 3 Years |
