DAHUA - RECORDER | CAMERA

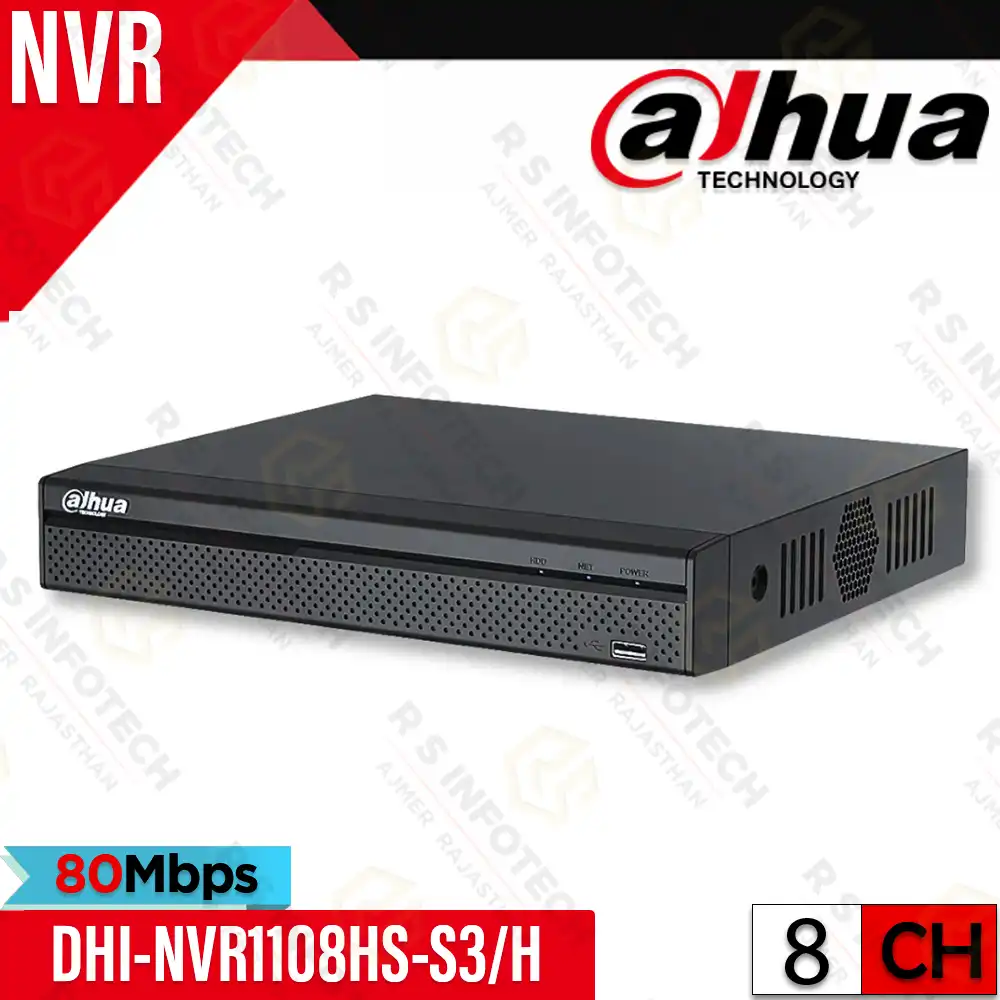

• Channels: Supports up to 8 IP cameras with resolutions up to 8MP.
• Compression: Smart H.265+, H.265, Smart H.264+ and H.264 for reduced bandwidth and storage usage.
• Bandwidth: 80Mbps incoming bandwidth ensures smooth multi-camera recording.
• Video Output: Simultaneous HDMI and VGA output with up to 1080P Full HD resolution.
• Playback: Supports synchronous playback of up to 8 channels for easy monitoring.
• Storage: 1 SATA interface supports a hard drive capacity of up to 8TB.
• Remote Access: ONVIF compatible with DMSS mobile app for remote live view and playback.
• Compatibility: Supports ONVIF IP cameras, RTSP devices, Android, iOS and Windows clients.

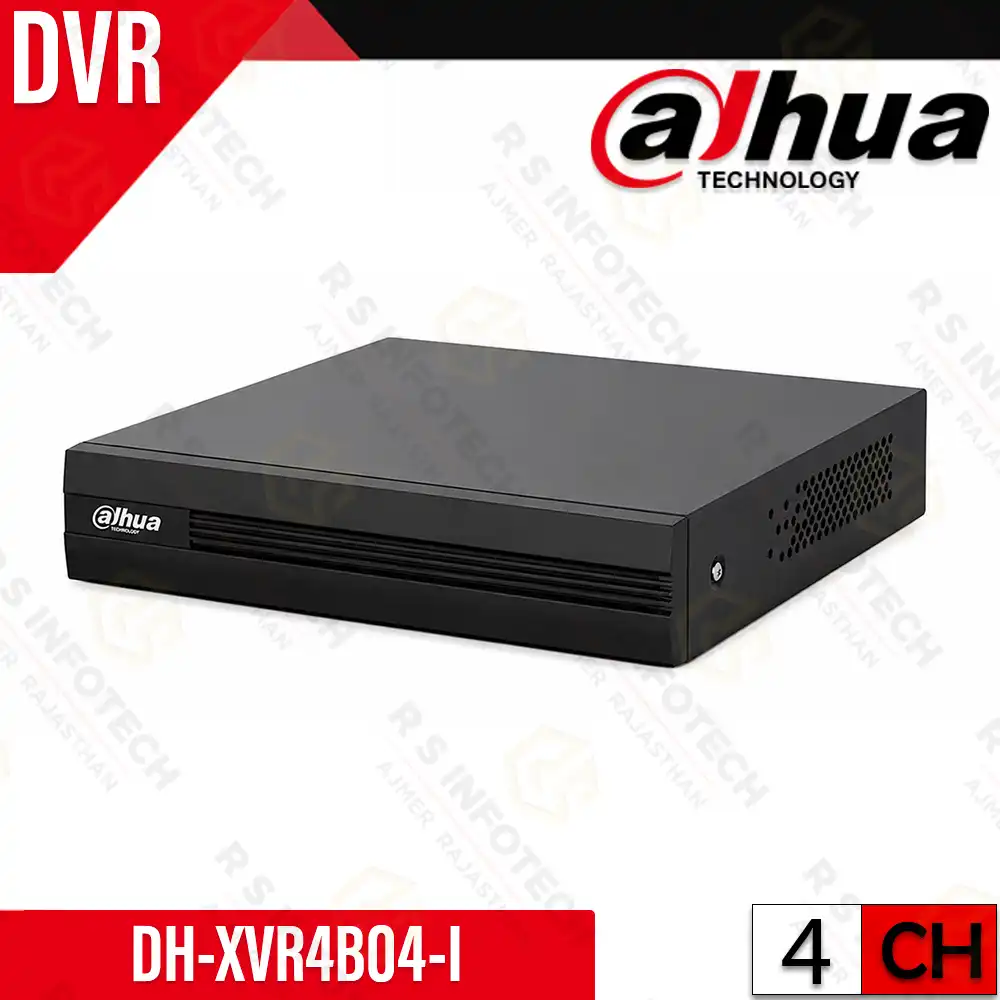

• Channels: Supports 4-channel HDCVI, AHD, TVI, CVBS and IP camera inputs.
• Compression: Smart H.265+, H.265, AI Coding, H.264+ and H.264 for efficient storage.
• AI Features: Supports SMD Plus human and vehicle classification on all analog channels.
• IP Support: Supports up to 5 IP cameras with resolutions up to 2MP.
• Bandwidth: Up to 21.5Mbps incoming bandwidth for IP camera recording.
• Video Output: HDMI and VGA simultaneous output with Full HD display support.
• Storage: 1 SATA interface supports a hard drive capacity of up to 6TB.
• Compatibility: Supports HDCVI, AHD, TVI, CVBS, ONVIF IP cameras and DMSS mobile app.

• Channels: Supports 8-channel HDCVI, AHD, TVI, CVBS and IP camera inputs.
• Compression: H.265+, H.265, H.264+ and H.264 dual-stream compression for efficient storage.
• IP Support: Supports up to 10 channels with IP cameras up to 6MP resolution.
• Bandwidth: Up to 40Mbps incoming bandwidth for smooth IP camera recording.
• Video Output: Simultaneous HDMI and VGA output with Full HD 1080P display support.
• Playback: Supports synchronous playback of up to 9 channels.
• Storage: 1 SATA interface supports a hard drive capacity of up to 6TB.
• Compatibility: Supports HDCVI, AHD, TVI, CVBS, ONVIF IP cameras and DMSS mobile monitoring.

• 4MP Lite Full-color Fixed-focal Eyeball Network Camera
• 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP
• Support Triple Stream
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm lights, max. illumination distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, scene
• Supports max. 256 GB Micro SD card and built-in Mic
• 12V DC/PoE power supply
• IP67 protection

• 5MP HDCVI Fixed IR Eyeball Camera
• The parameters and datasheets below can only be applied to A51-S2 series.
• In order to use the 5MP 16:9 HDCVI camera.
• the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
• Max. 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Max. IR length 20 m, Smart IR
• DC12V

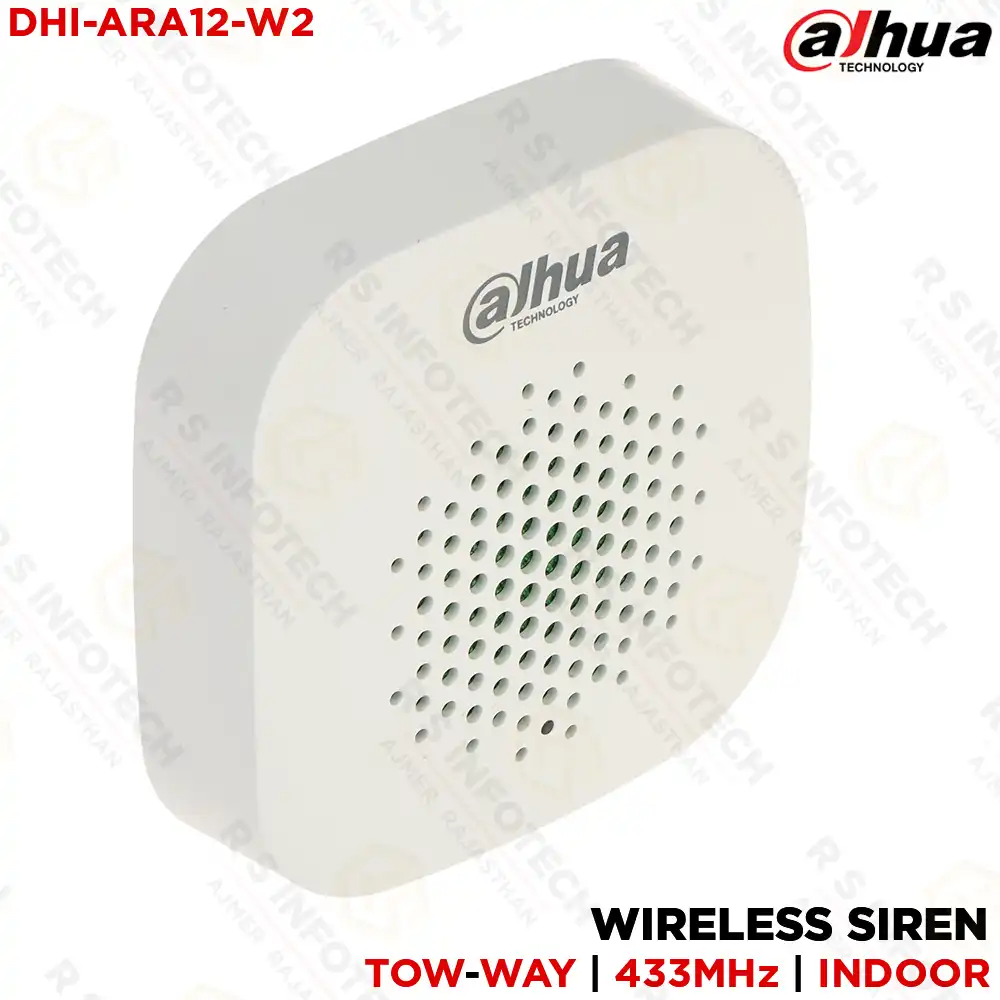

• Siren Type: Indoor wireless siren with high-intensity sound and LED alarm indication.
• Wireless Frequency: 433MHz two-way wireless communication with frequency hopping.
• Alarm Volume: Up to 105dB siren with three adjustable volume levels.
• Transmission Range: Up to 800 meters (open area) for stable wireless communication.
• Power Source: Operates on 2 × CR123A batteries with up to 2.5 years battery life.
• Security: AES-128 encryption with tamper alarm and low battery notification.
• Smart Features: Supports cloud update, signal strength detection and temperature monitoring.
• Compatibility: Compatible with Dahua AirShield Wireless Alarm Hub and supported alarm systems.

Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth.
Supports IP cameras with a resolution up to 12 MP.
AI by Recorder supports 2-channel SMD Plus.
AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
Supports EPTZ, and one-click arming and disarming.

• 16CH 1U 2HDDs Lite Network Video Recorder
• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
• Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
• Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
• Supports IP cameras with a resolution up to 12 MP.
• AI by Recorder supports 4-channel SMD Plus.
• AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
• Supports EPTZ, and one-click arming and disarming.
