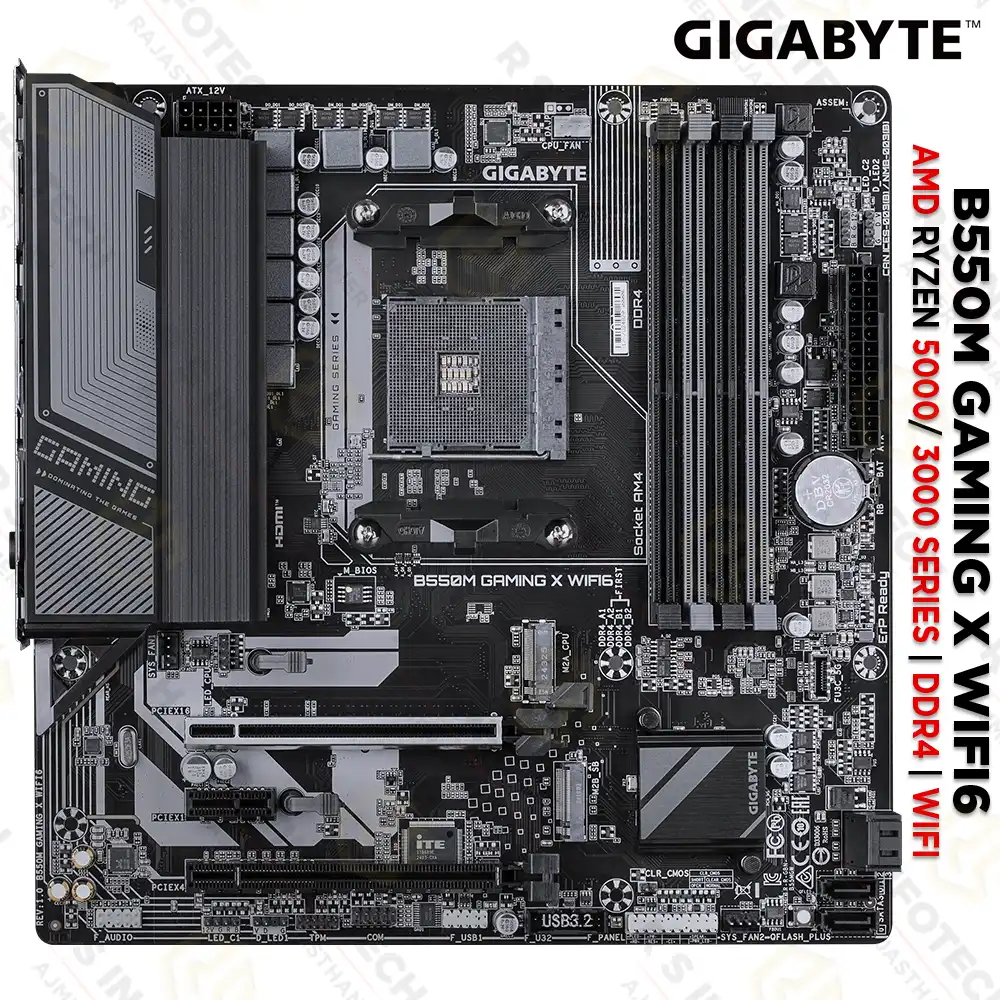

GIGABYTE B550M GAMING X WIFI6 AMD DDR4 RYZEN 3000/4000/5000 SERIES MOTHERBOARD
| Specification | Details |
|---|---|
| Brand: | GIGABYTE |
| Model: | B550M GAMING X WIFI6 |
| Form Factor: | Micro-ATX |
| Chipset: | AMD B550 |
| CPU Socket: | AMD AM4 |
| Processor Support: | AMD Ryzen™ 5000, 5000G, 4000G, 3000 & 3000G Series |
| Memory Type: | DDR4 |
| Memory Slots: | 4 × DIMM |
| Maximum Memory: | Up to 128GB |
| Memory Speed: | DDR4 3200MHz Native, XMP & Overclocking Support |
| Memory Architecture: | Dual Channel |
| PCIe Slots: | 1 × PCIe 4.0 x16, 2 × PCIe x1 |
| M.2 Slots: | 2 × M.2 (PCIe 4.0/3.0 NVMe) |
| SATA Ports: | 4 × SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 |
| LAN: | Realtek Gigabit Ethernet |
| Wireless: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Yes (Integrated) |
| Video Outputs: | 1 × HDMI 2.1, 1 × DisplayPort 1.4 |
| Audio: | Realtek ALC1220 7.1-Channel High Definition Audio |
| RGB Support: | RGB Fusion 2.0, Addressable RGB & RGB LED Headers |
| Cooling Features: | Smart Fan 6 with Multiple Hybrid Fan Headers |
| BIOS Features: | Q-Flash Plus, UEFI BIOS |
| Operating System: | Windows 11 / Windows 10 (64-bit) |
| Warranty: | 3 Years |
