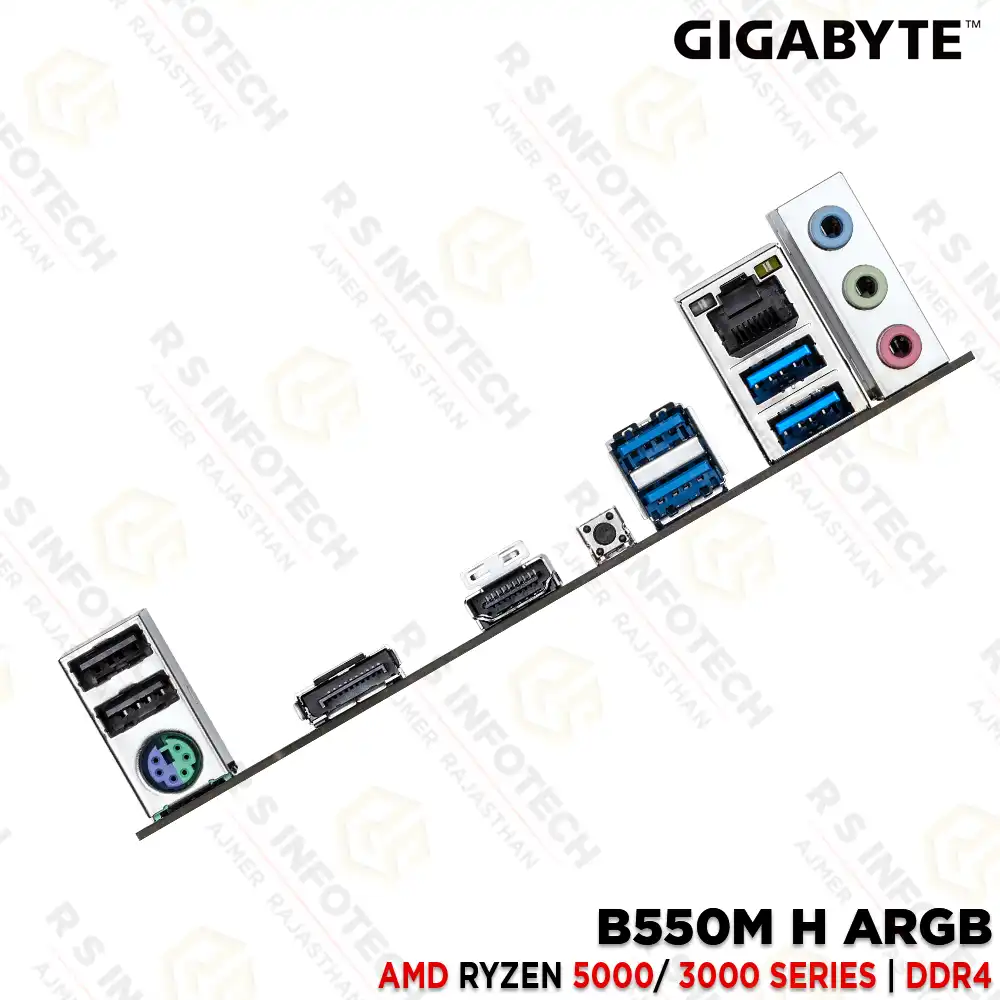

GIGABYTE B550M H ARGB DDR4 AMD RYZEN 3000 4000 5000 & G-SERIES MOTHERBOARD
| Specification | Details |
|---|---|
| Brand: | GIGABYTE |
| Model: | B550M H ARGB |
| Form Factor: | Micro-ATX |
| Chipset: | AMD B550 |
| CPU Socket: | AMD AM4 |
| Processor Support: | AMD Ryzen™ 5000, 5000G, 4000G, 3000 & 3000G Series |
| Memory Type: | DDR4 |
| Memory Slots: | 2 × DIMM |
| Maximum Memory: | 64GB |
| Memory Speed: | Up to DDR4-5100 MHz (OC) |
| Memory Architecture: | Dual Channel with XMP Support |
| PCIe Slots: | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| M.2 Slots: | 1 × M.2 PCIe 4.0 x4 / SATA (CPU Dependent) |
| SATA Ports: | 4 × SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 |
| LAN: | Realtek Gigabit Ethernet |
| Wireless: | No |
| Bluetooth: | No |
| Video Outputs: | 1 × HDMI 2.1, 1 × DisplayPort 1.4 |
| USB Ports: | 4 × USB 3.2 Gen1, 2 × USB 2.0 (Rear) |
| Audio: | Realtek High Definition 7.1-Channel Audio |
| RGB Support: | 3 × Addressable RGB Gen2 Headers, 1 × RGB LED Header |
| Cooling Features: | Smart Fan 6 with Multiple Temperature Sensors |
| BIOS Features: | UEFI BIOS, Q-Flash Plus |
| Operating System: | Windows 11 / Windows 10 (64-bit) |
| Warranty: | 3 Years |
