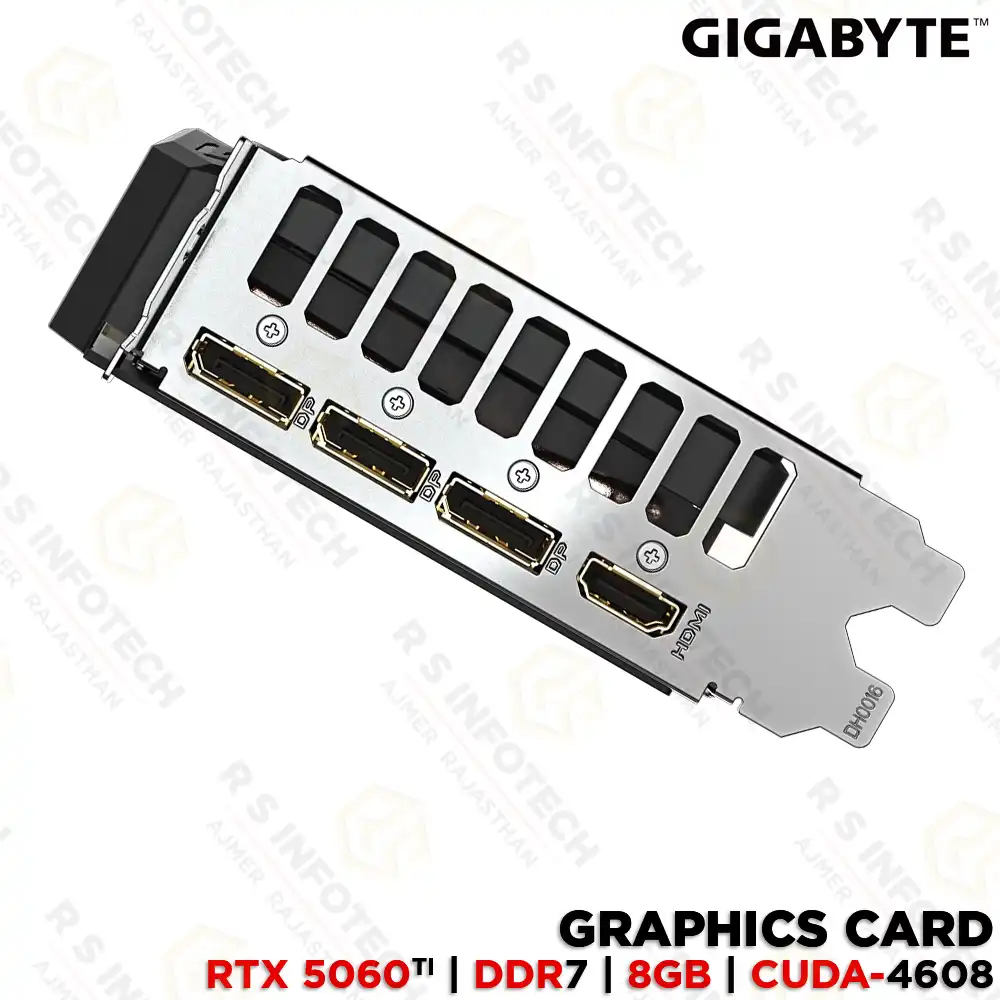

GIGABYTE GEFORCE RTX 5060TI WINDFORCE OC 8GB GDDR7 GRAPHIC CARD (GV-N506TWF2MAXOC-8GD)
| SPECIFICATION | DETAILS |
|---|---|
| Brand: | GIGABYTE |
| Model: | GV-N506TWF2MAX OC-8GD |
| GPU: | NVIDIA GeForce RTX 5060 Ti |
| Architecture: | NVIDIA Blackwell |
| CUDA Cores: | 4608 |
| Core Clock: | 2587 MHz |
| Memory: | 8GB GDDR7 |
| Memory Speed: | 28 Gbps |
| Memory Bus: | 128-bit |
| Card Bus: | PCI Express 5.0 x8 |
| Cooling: | GIGABYTE WINDFORCE 2X |
| Fan: | 2× Fans |
| Ray Tracing: | Yes |
| AI Technology: | NVIDIA DLSS 4 |
| Maximum Resolution: | 7680 × 4320 |
| Multi-View: | Up to 4 Displays |
| DisplayPort: | 3× DisplayPort 2.1b |
| HDMI: | 1× HDMI 2.1b |
| DirectX: | DirectX 12 Ultimate |
| OpenGL: | 4.6 |
| Power Consumption: | 180W |
| Recommended PSU: | 650W |
| Power Connector: | 1× 8-Pin |
| Slot Width: | 2 Slots |
| Card Dimensions: | 208 × 120 × 40mm |
| PCB Form: | ATX |
| Warranty: | 3 Years |
