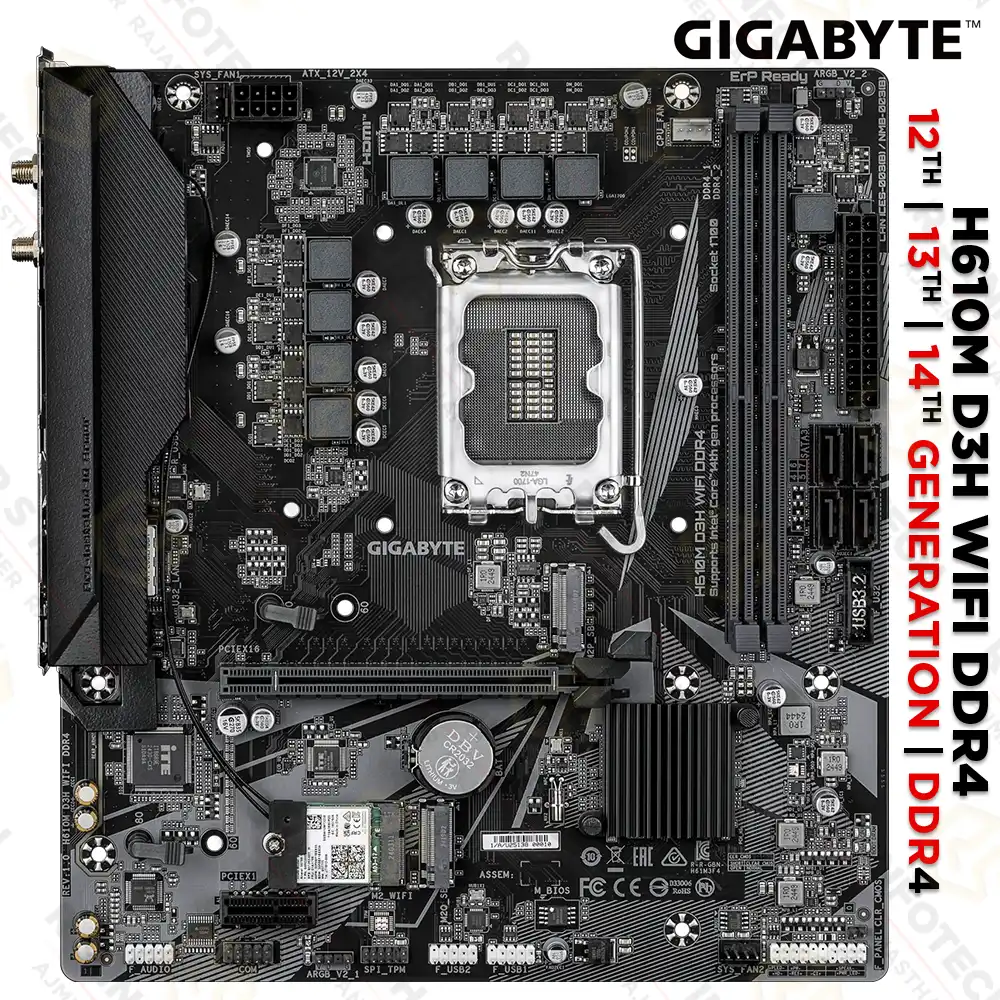

GIGABYTE H610M D3H WIFI DDR4 LGA1700 MOTHERBOARD | DDR4 WI-FI AC (3 YEAR)
| SPECIFICATION | DETAILS |
|---|---|
| Brand: | GIGABYTE |
| Model: | H610M D3H WIFI DDR4 |
| Product Type: | Micro ATX Motherboard |
| Socket: | LGA1700 |
| Chipset: | Intel H610 Express |
| Processor Support: | Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron |
| VRM: | 6+1+1 Hybrid Digital VRM |
| Memory Type: | DDR4 |
| Memory Slots: | 2 × DDR4 DIMM |
| Maximum Memory: | 64GB |
| Memory Speed: | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Memory Architecture: | Dual Channel |
| Memory Support: | Non-ECC Unbuffered, ECC Unbuffered in Non-ECC Mode, XMP |
| Graphics: | Integrated Intel HD Graphics Support |
| Display Outputs: | 1 × D-Sub, 1 × HDMI |
| HDMI Resolution: | Up to 4096 × 2160 @ 60Hz |
| PCIe x16 Slot: | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot: | 1 × PCIe 3.0 x1 |
| M.2 Slots: | 2 × M.2 Socket 3, PCIe Gen3 |
| M.2 Support: | 2280/2260 NVMe PCIe 3.0 x4/x2 and x2 |
| SATA: | 4 × SATA 6Gb/s |
| LAN: | Realtek GbE LAN, 10/100/1000 Mbps |
| Wi-Fi: | 802.11a/b/g/n/ac Dual Band |
| Wi-Fi Speed: | Up to 1.73Gbps |
| Bluetooth: | Bluetooth 4.2 and Above |
| Audio Codec: | Realtek High Definition Audio |
| Audio Channels: | 2/4/5.1/7.1-Channel |
| Rear USB: | 2 × USB 3.2 Gen1 + 4 × USB 2.0/1.1 |
| Internal USB: | 1 × USB 3.2 Gen1 Header + USB 2.0 Headers |

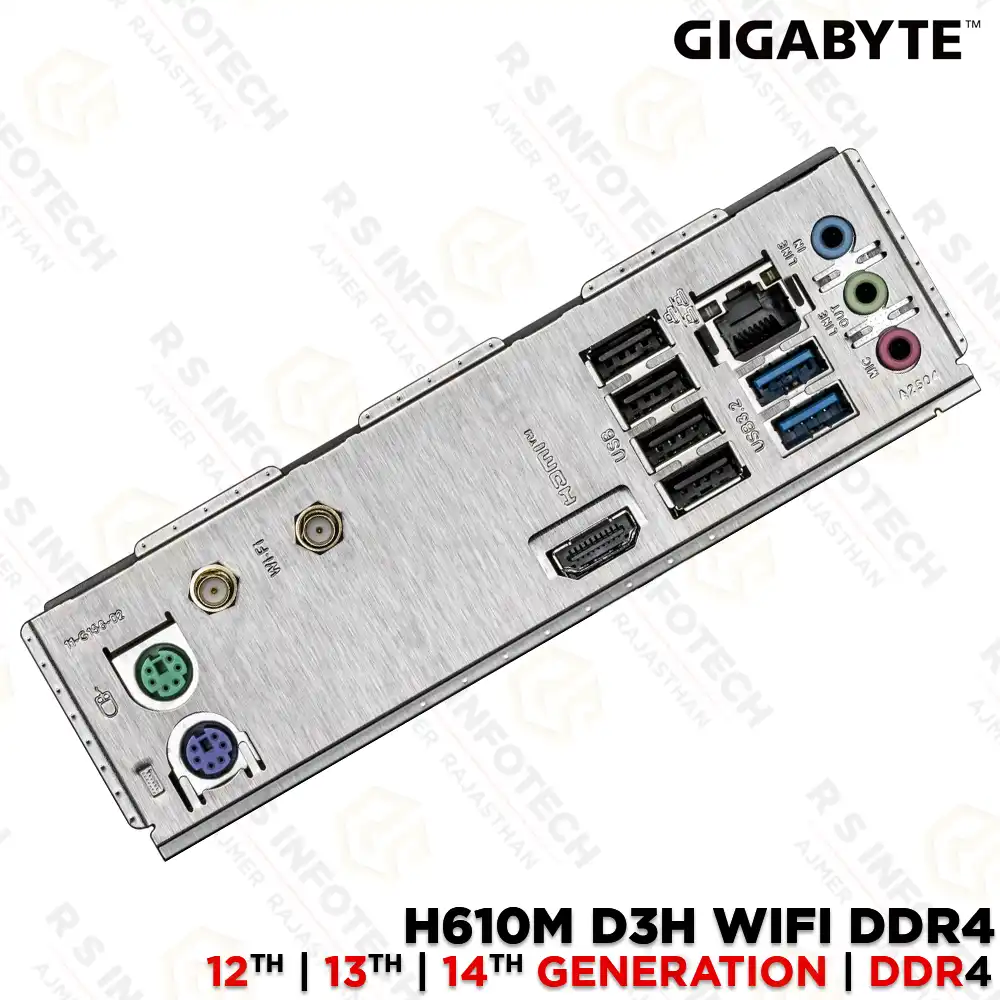

| Rear I/O: | PS/2 Keyboard, PS/2 Mouse, D-Sub, HDMI, USB, RJ-45, Audio |
| Fan Headers: | 3 × PWM/DC Fan Headers |
| Temperature Sensors: | 4 × Internal Temperature Sensors |
| RGB Headers: | 2 × Addressable RGB Gen2 LED Headers |
| CPU Power: | 1 × 8-Pin ATX 12V |
| Main Power: | 1 × 24-Pin ATX |
| BIOS: | 128 Mbit AMI UEFI BIOS |
| Software: | GIGABYTE Control Center, Q-Flash |
| Operating System: | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor: | Micro ATX |
| Dimensions: | 24.4 × 22.0 cm |
| Warranty: | 3 YEAR |
