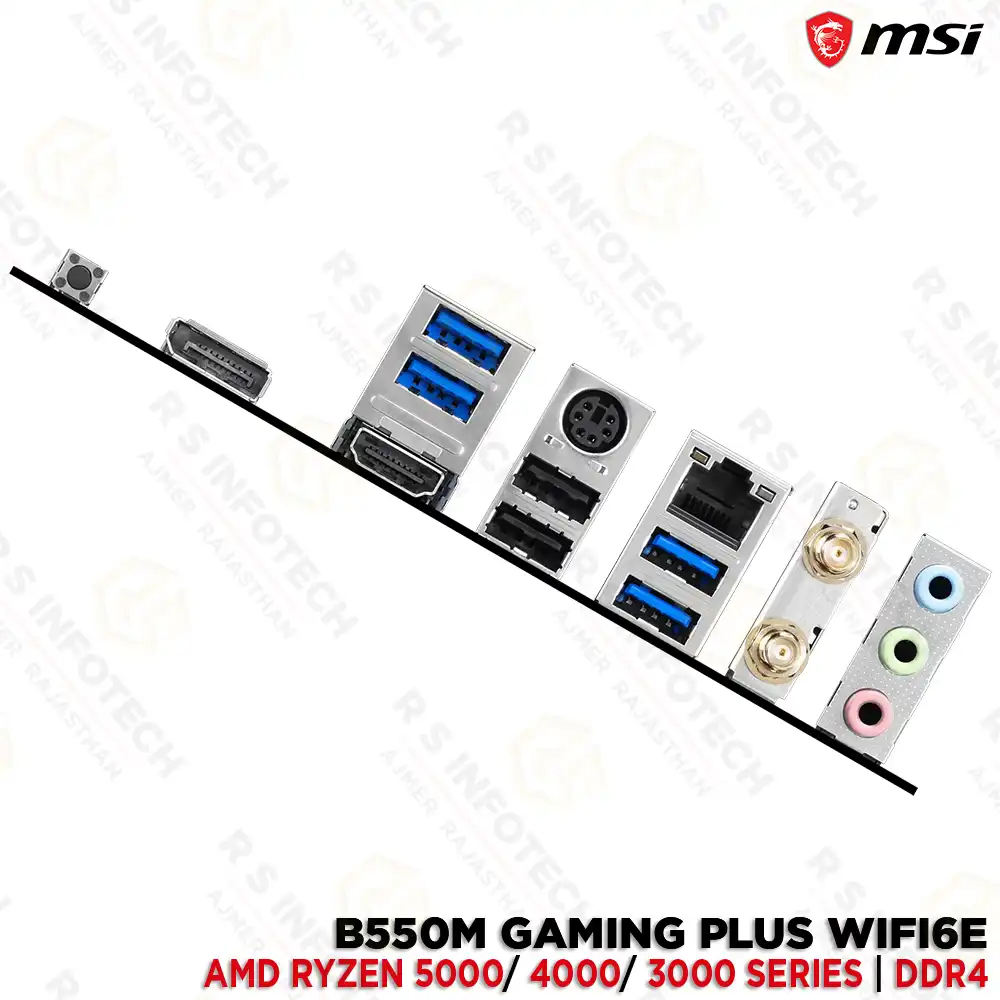

MSI B550M GAMING PLUS WIFI6E DDR4 AMD RYZEN 5000 5000G 4000G 3000 SERIES MOTHERBOARD
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B550M GAMING PLUS WIFI6E |
| Chipset | AMD B550 |
| CPU Socket | AM4 |
| CPU Support | AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series |
| Form Factor | mATX |
| Dimensions | 243.84 × 243.84 mm |
| Memory Type | DDR4 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 128GB |
| Memory Channel | Dual Channel |
| Memory Speed | Up to 4400+ MT/s (OC) |
| Memory Technology | A-XMP, Non-ECC, Un-buffered |
| PCIe x16 | 1 × PCIe 4.0 x16 |
| PCIe x1 | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 |
| M.2_1 | PCIe 4.0 x4 / SATA, 2242/2260/2280 |
| M.2_2 | PCIe 3.0 x4, 2242/2260/2280 |
| SATA Ports | 4 × SATA 6Gb/s |
| SATA RAID | RAID 0 / RAID 1 / RAID 10 |
| M.2 RAID | RAID 0 / RAID 1 |
| LAN | Realtek RTL8111H 1Gbps |
| Wi-Fi | Wi-Fi 6E |
| Wireless Bands | 2.4GHz / 5GHz / 6GHz |
| Wireless Standard | 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.3 |
| Audio Codec | Realtek ALC897 |
| Audio | 7.1-Channel High Definition Audio |
| HDMI | HDMI 2.1, up to 4K 60Hz |
| DisplayPort | DP 1.4, up to 4K 60Hz |
| Rear USB | 2 × USB 2.0, 4 × USB 5Gbps Type-A |
| Front USB | 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 5Gbps Type-C |
| Fan Headers | 1 × CPU Fan, 1 × Pump Fan, 3 × System Fan |
| RGB Headers | 2 × Addressable V2 RGB, 2 × RGB |
| TPM | TPM 2.0 Header |
| Debug Feature | 4 × EZ Debug LED |
| BIOS Feature | Flash BIOS Port |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
