| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B850 GAMING PLUS WIFI |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256GB |
| Memory Channel | Dual Channel |
| Memory Speed | Up to 8200+ MT/s (OC) |
| Memory Support | AMD EXPO™, Memory Overclocking, Non-ECC, Un-buffered |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 |
| Additional PCIe Slots | 1 × PCIe 4.0 x4, 2 × PCIe 3.0 x1 |
| M.2 Slots | 3 |
| M.2_1 | PCIe 5.0 x4 |
| M.2_2 | PCIe 4.0 x4 |
| M.2_3 | PCIe 4.0 x2 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | Realtek 8126VB 5Gbps LAN |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Audio Codec | Realtek ALC897 |
| Audio | 7.1-Channel High Definition Audio |
| Display Output | 1 × DisplayPort |

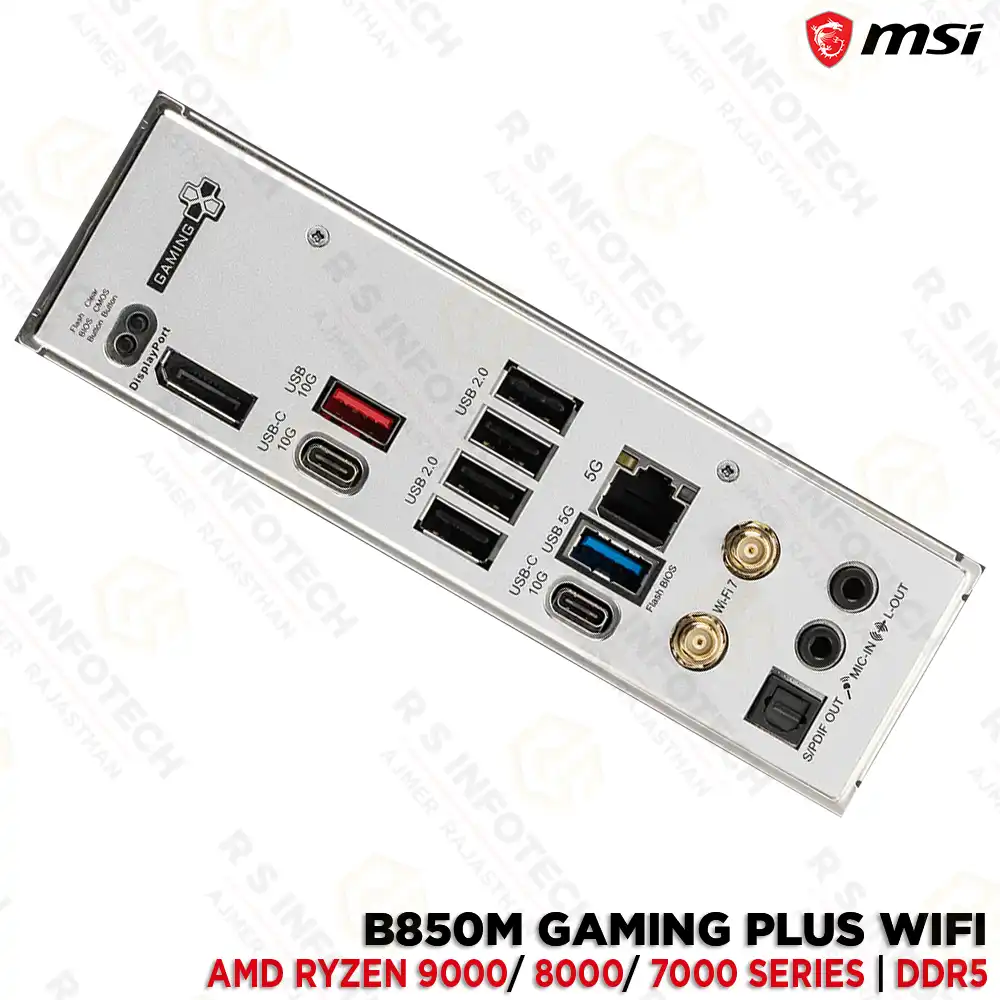

| Rear USB | USB 2.0, USB 5Gbps, USB 10Gbps Type-A and Type-C |
| Front USB | USB 2.0, USB 5Gbps Type-A and Type-C |
| Fan Headers | CPU Fan / Pump-System Fan / System Fan |
| RGB Headers | Addressable V2 RGB and RGB |
| Debug Feature | EZ Debug LED |
| BIOS Feature | Flash BIOS Button |
| PCB | 6-Layer PCB |
| Operating System | Windows 11 64-bit |
| Special Features | EZ M.2 Shield Frozr II, EZ PCIe Clip II, EZ Antenna, Core Boost, Memory Boost |
