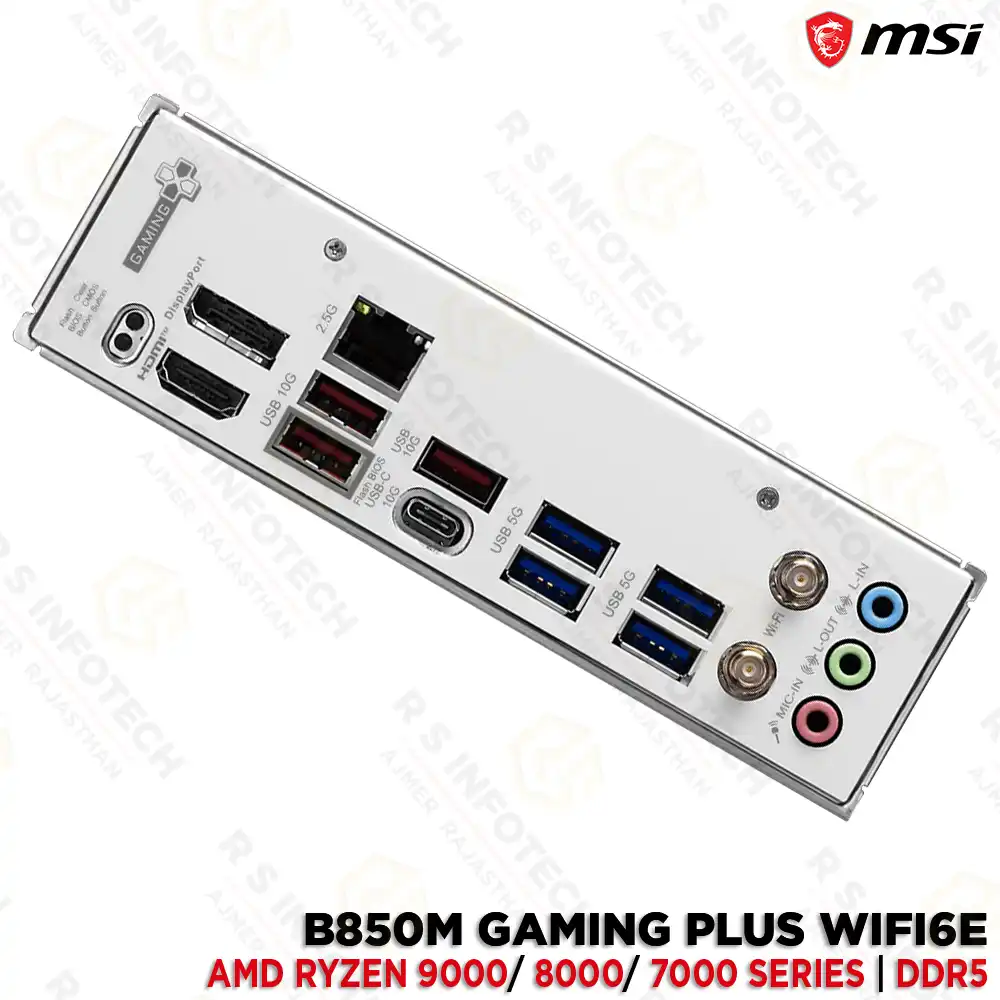

MSI B850M GAMING PLUS WIFI6E DDR5 AMD RYZEN 9000 8000 & 7000 SERIES MOTHERBOARD
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B850M GAMING PLUS WIFI6E |
| Product Type | Gaming Motherboard |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8200+ MT/s (OC) |
| Memory Support | Dual Channel / AMD EXPO / Non-ECC / Unbuffered |
| PCIe Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 1 × PCIe 5.0 x4 / 1 × PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gbps |
| LAN | Realtek 2.5Gbps LAN |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | 5.3 |
| HDMI | 1 × HDMI 2.1, up to 4K 60Hz |
| DisplayPort | 1 × DisplayPort 1.4, up to 4K 60Hz |
| USB 10Gbps | 5 × — 3 Type-A + 2 Type-C |
| USB 5Gbps | 6 × Type-A |
| USB 2.0 | 4 × |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| Power Design | 10+2+1 Duet Rail Power System |
| PCB | 6-Layer, 2oz Thickened Copper |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 × 243.84mm |
| Operating System | Windows 11 64-bit |
